Fluxus::Renderer Class Reference

#include <Renderer.h>

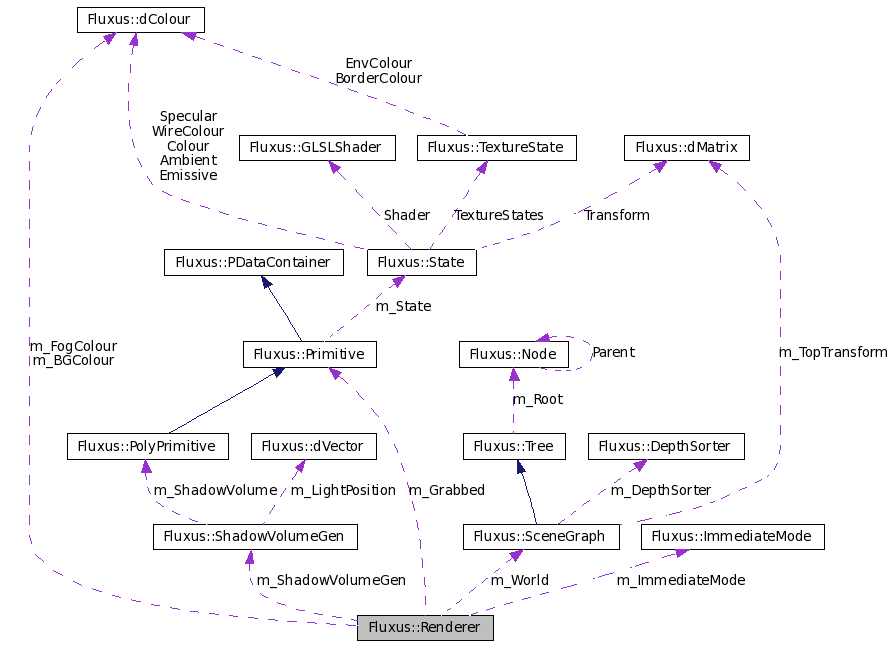

Collaboration diagram for Fluxus::Renderer:

[legend]

Public Types
enum	stereo_mode_t { noStereo, crystalEyes, colourStereo }
Public Member Functions
	Renderer ()
	~Renderer ()
Rendering control
void	Render ()
void	Clear ()
State accessors
State *	GetState ()
void	ApplyState ()
void	PushState ()
void	PopState ()
void	Grab (int ID)
	Grabs the object state and makes it current.
void	UnGrab ()
Primitive *	Grabbed ()
Primitive handling
int	AddPrimitive (Primitive *Prim)
Primitive *	GetPrimitive (int ID)
void	RemovePrimitive (int ID)
	Make sure it's removed from the physics engine too.
void	DetachPrimitive (int ID)
dMatrix	GetGlobalTransform (int ID)
dBoundingBox	GetBoundingBox (int ID)
void	RenderPrimitive (Primitive *Prim)
int	Select (unsigned int CamIndex, int x, int y, int size)
	Get primitive ID from screen space.
Lights
int	AddLight (Light *l)
Light *	GetLight (int id)
void	ClearLights ()
Camera
vector< Camera > &	GetCameraVec ()
unsigned int	AddCamera (const Camera &cam)
Scenegraph access
const SceneGraph &	GetSceneGraph ()
Global state control
void	DrawText (const string &Text)
void	Reinitialise ()
void	SetMotionBlur (bool s, float a=0.02)
void	SetResolution (int x, int y)
void	GetResolution (int &x, int &y)
TexturePainter *	GetTexturePainter ()
void	ShowAxis (bool s)
void	ShowCursor (bool s)
void	SetBGColour (const dColour &s)
void	SetClearFrame (bool s)
void	SetClearZBuffer (bool s)
void	SetClearAccum (bool s)
void	SetDesiredFPS (float s)
void	SetFPSDisplay (bool s)
void	SetFog (const dColour &c, float d, float s, float e)
void	ShadowLight (unsigned int s)
void	DebugShadows (bool s)
void	ShadowLength (float s)
double	GetTime ()
double	GetDelta ()
bool	SetStereoMode (stereo_mode_t mode)
stereo_mode_t	GetStereoMode ()
void	PrintInfo ()
Thin interface to some hardware features
void	SetColourMask (bool inred, bool ingreen, bool inblue, bool inalpha)
void	Accum (int mode, float factor)
void	DrawBuffer (GLenum mode)
void	ReadBuffer (GLenum mode)
Data Structures
struct	SelectInfo

---

Detailed Description

This is the main interface for the fluxus renderer, all control should come through this interface

Definition at line 57 of file Renderer.h.

---

Member Enumeration Documentation

enum Fluxus::Renderer::stereo_mode_t

Enumerator:

noStereo
crystalEyes
colourStereo

Definition at line 123 of file Renderer.h.

---

Constructor & Destructor Documentation

Renderer::Renderer

(

)

Definition at line 45 of file Renderer.cpp.

Renderer::~Renderer

(

)

Definition at line 78 of file Renderer.cpp.

---

Member Function Documentation

void Renderer::Render

(

)

Definition at line 100 of file Renderer.cpp.

void Renderer::Clear

(

)

Definition at line 86 of file Renderer.cpp.

State * Renderer::GetState

(

)

Definition at line 513 of file Renderer.cpp.

void Renderer::ApplyState

(

)

Definition at line 524 of file Renderer.cpp.

void Renderer::PushState

(

)

Definition at line 529 of file Renderer.cpp.

void Renderer::PopState

(

)

Definition at line 538 of file Renderer.cpp.

void Renderer::Grab

(

int

ID

)

Grabs the object state and makes it current.

Definition at line 554 of file Renderer.cpp.

void Renderer::UnGrab

(

)

Definition at line 567 of file Renderer.cpp.

Primitive* Fluxus::Renderer::Grabbed

(

)

[inline]

Definition at line 80 of file Renderer.h.

int Renderer::AddPrimitive

(

Primitive *

Prim

)

Definition at line 459 of file Renderer.cpp.

Primitive * Renderer::GetPrimitive

(

int

ID

)

Definition at line 466 of file Renderer.cpp.

void Renderer::RemovePrimitive

(

int

ID

)

Make sure it's removed from the physics engine too.

Definition at line 473 of file Renderer.cpp.

void Renderer::DetachPrimitive

(

int

ID

)

Moves the primitive (and it's subtree) from it's position in the graph and adds it to the root.

Definition at line 483 of file Renderer.cpp.

dMatrix Renderer::GetGlobalTransform

(

int

ID

)

Definition at line 495 of file Renderer.cpp.

dBoundingBox Renderer::GetBoundingBox

(

int

ID

)

Definition at line 503 of file Renderer.cpp.

void Renderer::RenderPrimitive

(

Primitive *

Prim

)

Immediate mode (don't delete prim till after Render() - when it will actually be rendered

Definition at line 490 of file Renderer.cpp.

int Renderer::Select	(	unsigned int	CamIndex,
		int	x,
		int	y,
		int	size
	)

Get primitive ID from screen space.

Definition at line 409 of file Renderer.cpp.

int Renderer::AddLight

(

Light *

l

)

Definition at line 380 of file Renderer.cpp.

Light * Renderer::GetLight

(

int

id

)

Definition at line 387 of file Renderer.cpp.

void Renderer::ClearLights

(

)

Definition at line 393 of file Renderer.cpp.

vector<Camera>& Fluxus::Renderer::GetCameraVec

(

)

[inline]

Definition at line 113 of file Renderer.h.

unsigned int Fluxus::Renderer::AddCamera

(

const Camera &

cam

)

[inline]

Definition at line 114 of file Renderer.h.

const SceneGraph& Fluxus::Renderer::GetSceneGraph

(

)

[inline]

Definition at line 120 of file Renderer.h.

void Renderer::DrawText

(

const string &

Text

)

Definition at line 578 of file Renderer.cpp.

void Fluxus::Renderer::Reinitialise

(

)

[inline]

Definition at line 129 of file Renderer.h.

void Fluxus::Renderer::SetMotionBlur	(	bool	s,
		float	a = 0.02
	)			[inline]

Definition at line 130 of file Renderer.h.

void Fluxus::Renderer::SetResolution	(	int	x,
		int	y
	)			[inline]

Definition at line 131 of file Renderer.h.

void Fluxus::Renderer::GetResolution	(	int &	x,
		int &	y
	)			[inline]

Definition at line 132 of file Renderer.h.

TexturePainter* Fluxus::Renderer::GetTexturePainter

(

)

[inline]

Definition at line 133 of file Renderer.h.

void Fluxus::Renderer::ShowAxis

(

bool

s

)

[inline]

Definition at line 134 of file Renderer.h.

void Renderer::ShowCursor

(

bool

s

)

Definition at line 597 of file Renderer.cpp.

void Fluxus::Renderer::SetBGColour

(

const dColour &

s

)

[inline]

Definition at line 136 of file Renderer.h.

void Fluxus::Renderer::SetClearFrame

(

bool

s

)

[inline]

Definition at line 137 of file Renderer.h.

void Fluxus::Renderer::SetClearZBuffer

(

bool

s

)

[inline]

Definition at line 138 of file Renderer.h.

void Fluxus::Renderer::SetClearAccum

(

bool

s

)

[inline]

Definition at line 139 of file Renderer.h.

void Fluxus::Renderer::SetDesiredFPS

(

float

s

)

[inline]

Definition at line 140 of file Renderer.h.

void Fluxus::Renderer::SetFPSDisplay

(

bool

s

)

[inline]

Definition at line 141 of file Renderer.h.

void Fluxus::Renderer::SetFog	(	const dColour &	c,
		float	d,
		float	s,
		float	e
	)			[inline]

Definition at line 142 of file Renderer.h.

void Fluxus::Renderer::ShadowLight

(

unsigned int

s

)

[inline]

Definition at line 144 of file Renderer.h.

void Fluxus::Renderer::DebugShadows

(

bool

s

)

[inline]

Definition at line 145 of file Renderer.h.

void Fluxus::Renderer::ShadowLength

(

float

s

)

[inline]

Definition at line 146 of file Renderer.h.

double Fluxus::Renderer::GetTime

(

)

[inline]

Definition at line 147 of file Renderer.h.

double Fluxus::Renderer::GetDelta

(

)

[inline]

Definition at line 148 of file Renderer.h.

bool Renderer::SetStereoMode

(

stereo_mode_t

mode

)

Definition at line 620 of file Renderer.cpp.

stereo_mode_t Fluxus::Renderer::GetStereoMode

(

)

[inline]

Definition at line 150 of file Renderer.h.

void Renderer::PrintInfo

(

)

Definition at line 656 of file Renderer.cpp.

void Renderer::SetColourMask	(	bool	inred,
		bool	ingreen,
		bool	inblue,
		bool	inalpha
	)

Definition at line 643 of file Renderer.cpp.

void Renderer::Accum	(	int	mode,
		float	factor
	)

Definition at line 651 of file Renderer.cpp.

void Renderer::DrawBuffer

(

GLenum

mode

)

Definition at line 610 of file Renderer.cpp.

void Renderer::ReadBuffer

(

GLenum

mode

)

Definition at line 615 of file Renderer.cpp.

---

The documentation for this class was generated from the following files:

• src/Renderer.h
• src/Renderer.cpp

---
