Fluxus::SceneGraph Class Reference

#include <SceneGraph.h>

Inheritance diagram for Fluxus::SceneGraph:

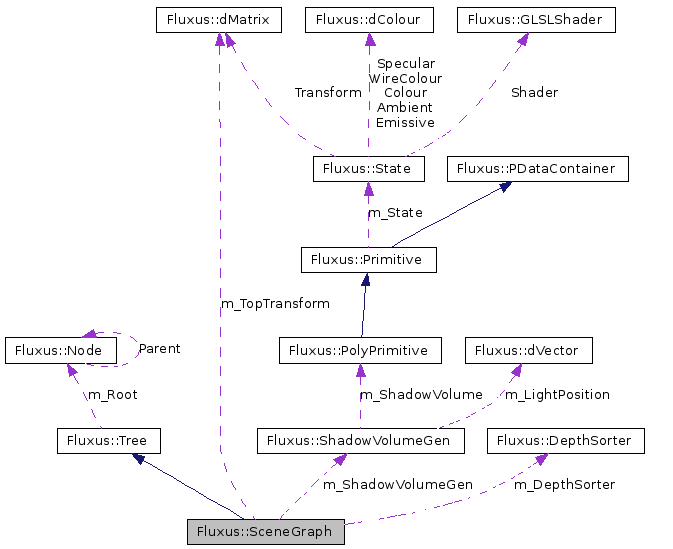

[legend]Collaboration diagram for Fluxus::SceneGraph:

[legend]

Public Types
enum	Mode { RENDER, SELECT }
Public Member Functions
	SceneGraph ()
	~SceneGraph ()
void	Render (Mode rendermode=RENDER)
virtual void	Clear ()
	Clears the graph of all primtives.
void	Detach (SceneNode *node)
dMatrix	GetGlobalTransform (const SceneNode *node) const
	Gets the world space transfrom of the node.
void	GetBoundingBox (SceneNode *node, dBoundingBox &result)
ShadowVolumeGen *	GetShadowVolumeGen ()
	Accessor for the shadow volume generator.
void	GetNodes (const Node *node, vector< const SceneNode * > &nodes) const
	A utility for getting all the node in a subtree, as a flat list.
void	GetConnections (const Node *node, vector< pair< const SceneNode *, const SceneNode * > > &connections) const
	A utility for getting all the connections in a subtree, as a flat list.

---

Detailed Description

A scene graph

Definition at line 49 of file SceneGraph.h.

---

Member Enumeration Documentation

enum Fluxus::SceneGraph::Mode

Enumerator:

RENDER
SELECT

Definition at line 55 of file SceneGraph.h.

---

Constructor & Destructor Documentation

SceneGraph::SceneGraph

(

)

Definition at line 22 of file SceneGraph.cpp.

SceneGraph::~SceneGraph

(

)

Definition at line 28 of file SceneGraph.cpp.

---

Member Function Documentation

void SceneGraph::Render

(

Mode

rendermode = RENDER

)

Traverses the graph depth first, rendering all nodes

Definition at line 32 of file SceneGraph.cpp.

void SceneGraph::Clear

(

)

[virtual]

Clears the graph of all primtives.

Reimplemented from Fluxus::Tree.

Definition at line 260 of file SceneGraph.cpp.

void SceneGraph::Detach

(

SceneNode *

node

)

Parents the node to the root, and sets its transform to keep it physically in the same place in the world.

Todo:

make the maintain transform optional

Definition at line 166 of file SceneGraph.cpp.

dMatrix SceneGraph::GetGlobalTransform

(

const SceneNode *

node

)

const

Gets the world space transfrom of the node.

Definition at line 180 of file SceneGraph.cpp.

void SceneGraph::GetBoundingBox	(	SceneNode *	node,
		dBoundingBox &	result
	)

Gets the bounding box of the node, and all its children too

Definition at line 212 of file SceneGraph.cpp.

ShadowVolumeGen* Fluxus::SceneGraph::GetShadowVolumeGen

(

)

[inline]

Accessor for the shadow volume generator.

Definition at line 78 of file SceneGraph.h.

void SceneGraph::GetNodes	(	const Node *	node,
		vector< const SceneNode * > &	nodes
	)			const

A utility for getting all the node in a subtree, as a flat list.

Definition at line 238 of file SceneGraph.cpp.

void SceneGraph::GetConnections	(	const Node *	node,
		vector< pair< const SceneNode *, const SceneNode * > > &	connections
	)			const

A utility for getting all the connections in a subtree, as a flat list.

Definition at line 249 of file SceneGraph.cpp.

---

The documentation for this class was generated from the following files:

• src/SceneGraph.h
• src/SceneGraph.cpp

---
